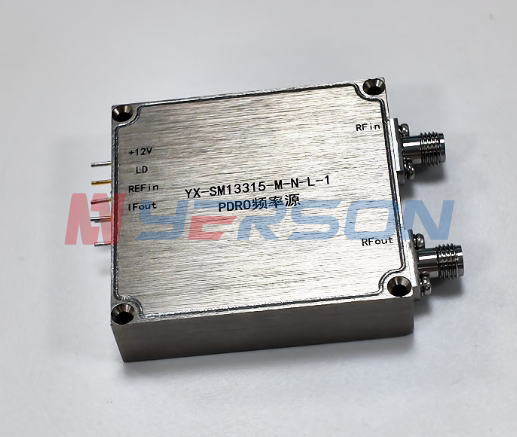

In microwave and RF systems, the spectral purity and power stability of fixed-frequency local oscillator signals are critical indicators that determine receiver sensitivity, mixing efficiency, test accuracy and the overall link dynamic range. The YX-SM13315-M-N-L-1 is a fixed-frequency frequency synthesizer adopting PDRO architecture. It provides a precise fixed output frequency of 13.325GHz with a standard output power of -15dBm～-10dBm. It is a high-performance fixed-frequency frequency synthesizer designed for RF local oscillator drive and precision test scenarios that prioritize high signal purity without high power output.
PDRO stands for Phase-Locked Dielectric Resonator Oscillator. It adopts a hybrid design of high-Q dielectric resonator and sampling phase-locked loop, combining the ultra-low near-end and far-end phase noise advantages of dielectric oscillators with the high frequency stability and high-precision frequency locking characteristics of phase-locked loop technology. Unlike broadband frequency synthesizers optimized for wideband tuning, PDROs are specially tailored for single fixed-frequency operation, delivering cleaner spectrum, lower spurious emissions and better overall signal performance.
The YX-SM13315-M-N-L-1 operates at a fixed frequency of 13.325GHz with a low-power RF output of -15dBm to -10dBm. This low-level output eliminates the need for additional precision attenuation or power amplification circuits. The frequency synthesizer can be directly connected to mixer LO ports, receiver front-end drive links, RF test systems and calibration equipment, effectively simplifying system design and reducing test errors caused by extra link loss and device cascading.
Key Features
Precise Fixed 13.325GHz Output: Features stable single-frequency output at 13.325GHz, suitable for dedicated channel local oscillation, fixed-frequency test excitation and system reference signal provision.
Low-Power RF Output: Standard output power of -15dBm～-10dBm with mild signal level, perfectly matching small-signal RF link requirements and preventing front-end circuit saturation.
Ultra-High Spectral Purity: Benefiting from high-Q resonant cavity and sampling phase-locked technology, the frequency synthesizer achieves extremely low phase noise, excellent spurious and harmonic suppression, ensuring high-quality RF signal output.
Superior Frequency Stability: Accurate frequency locking and temperature drift suppression ensure outstanding frequency accuracy and long-term operational stability in complex working environments.
Compact and Highly Integratable: Miniature structure and low power consumption support flexible integration into microwave assemblies, test instruments and miniaturized RF systems.
Typical Applications
-
Local oscillator drive for microwave receiver down-conversion links
-
Reference signal input for RF mixers
-
Performance testing and parameter calibration of general RF devices
-
Test excitation for passive components such as filters, couplers and power splitters
-
Fixed-frequency signal excitation for communication and radar RF systems
-
Supporting signal source for laboratory RF test platforms and calibration systems
Selection Notes
The YX-SM13315-M-N-L-1 is targeted at application scenarios with determined fixed-frequency demands and low local oscillator power requirements. System designers shall conduct comprehensive evaluation based on actual link power budget, frequency stability indicators, phase noise specifications, interface form, reference mode and operating temperature range. For customized demands including higher output power, wideband frequency sweeping, special electrical interfaces and customized reference configurations, personalized optimization and modification are supported based on the mature PDRO product platform.
To conclude, the YX-SM13315-M-N-L-1 is a professional fixed-frequency PDRO frequency synthesizer dedicated to 13.325GHz applications. With low phase noise, high frequency stability and low-power mild output characteristics, it perfectly solves the local oscillator signal supply problem of small-signal RF links, serving as a reliable and cost-effective frequency synthesizer solution for microwave testing, communication transceiver assemblies and radar supporting systems.
