YS2000

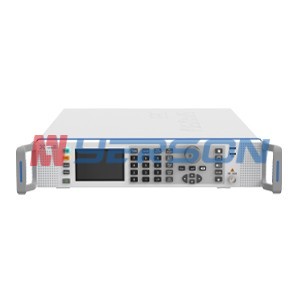

YS2000 Signal Generator
- In stock
Please contact us if you need more units than what is available online.
The YS2000 signal generator is positioned as a multifunctional and cost-effective instrument with a frequency range up to 20GHz. It boasts various commonly used analog modulation functions (AM/FM/ΦM), pulse modulation capabilities, low-frequency output capabilities, and frequency scanning functions. These features make the signal generator a flexible and versatile tool suitable for teaching and research, product development, production, and maintenance, meeting various application needs in different scenarios. The rich logic hardware interfaces, widescreen LCD display, standard 2U height chassis, comprehensive standard SCPI command set, and general multi-communication mode bring great convenience for remote control and secondary integration development.
BULK PRICING
| TECHNICAL DETAILS | |
|---|---|
| Frequency Range | 9kHz to 20GHz |
| Output Power | 20 dBm |
| Phase Noise | ≤-125dBc at 10GHz with a frequency offset of 20kHz |
| Level Accuracy | 0.8dB (3GHz < f ≤ 20GHz), 0.5dB (8MHz < f ≤ 3GHz) |
| Phase Noise at 20kHz frequency offset | ≤-130dBc at 1GHz, ≤-125dBc at 10GHz |
| Broadband Noise | < -130dBc at 10GHz frequency and 40MHz frequency offset |
| Harmonic Noise | ≤-55dbc within the range of 10MHz to 20GHz |
| Non-Harmonic Noise | ≤-68dbc within the range of 12GHz to 20GHz |
