Home / Products / Antenna / Waveguie Probe / Waveguide Probe With Waveguide Port / YX-OW19

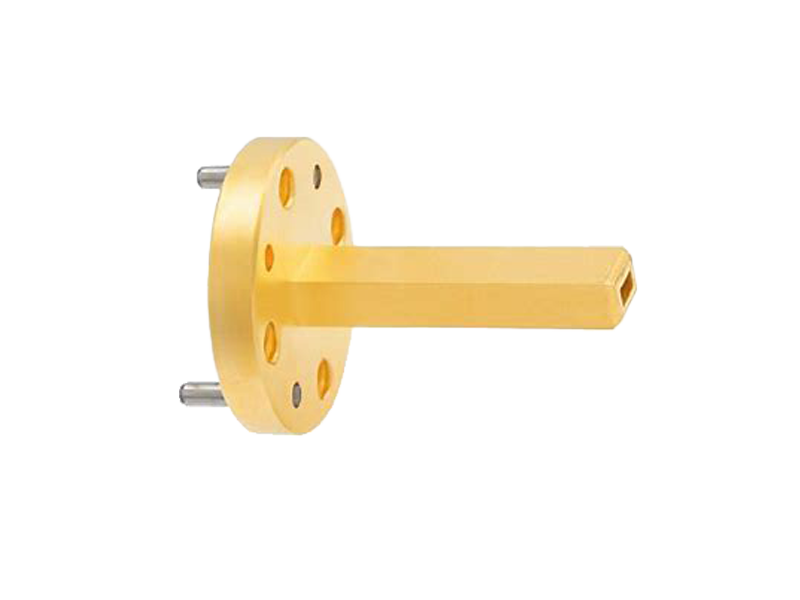

YX-OW19
6 dBi Gain,40 to 60GHz,WR-19 Waveguide Probe,Waveguide Port with Flange
- YX-OW19
- In stock
Please contact us if you need more units than what is available online.
BULK PRICING
| TECHNICAL DETAILS | |
|---|---|
| Minimum Frequency(GHz) | 40 |
| Maximum Frequency(GHz) | 60 |
| Waveguide | WR-19 |
| Gain typical(dB) | 6 |
| Polarization | Linear |
| VSWR typical | 1.5:1 |
| 3dB Beamwidth E-plane Typical | 89 |
| 3dB Beamwidth E-plane Typical | 70 |
| Cross Polarization Isolation Typical | 35 |
| Flange | UG-383/U-M（FUGP400） |
