Home / Products / Power Divider / Coaxial Power Divider / Two-way Power Divider / YX-PD2-3.5G-5.5G

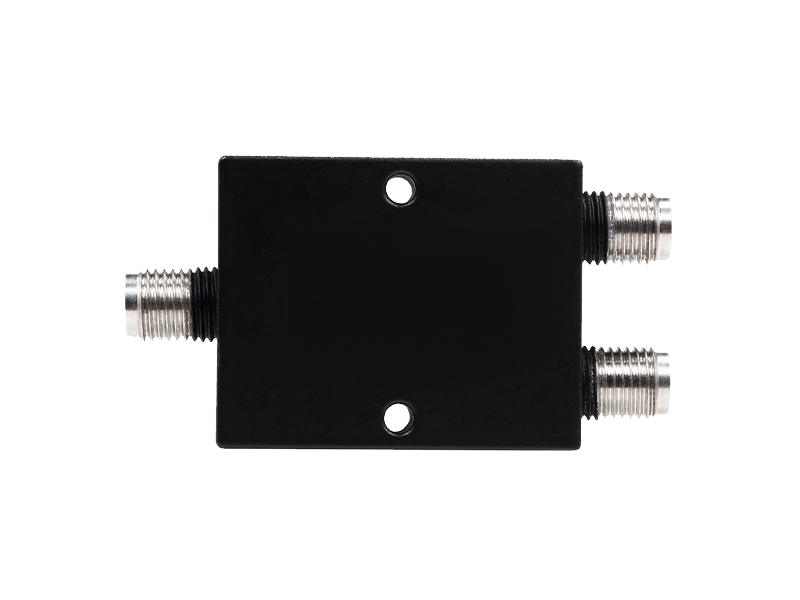

YX-PD2-3.5G-5.5G
Two-Way Power Divider,3.5G-5.5GHz, SMA-Female
- YX-PD2-3.5G-5.5G
- In stock
Please contact us if you need more units than what is available online.
BULK PRICING
| TECHNICAL DETAILS | |
|---|---|
| FrequencyRange(GHz) | 3.5-5.5 |
| AmplitudeBalance(dB) | ±0.2 |
| InsertionLoss(dB) | 3.9 |
| Isolation(dB) | 20 |
| VSWR typical | 1.25:1 |
| Coaxial Connector | SMA-Female |
