Home / Products / Programmable Step Attenuator / Attenuator / YX-PSADC-26.5G-11-1P1

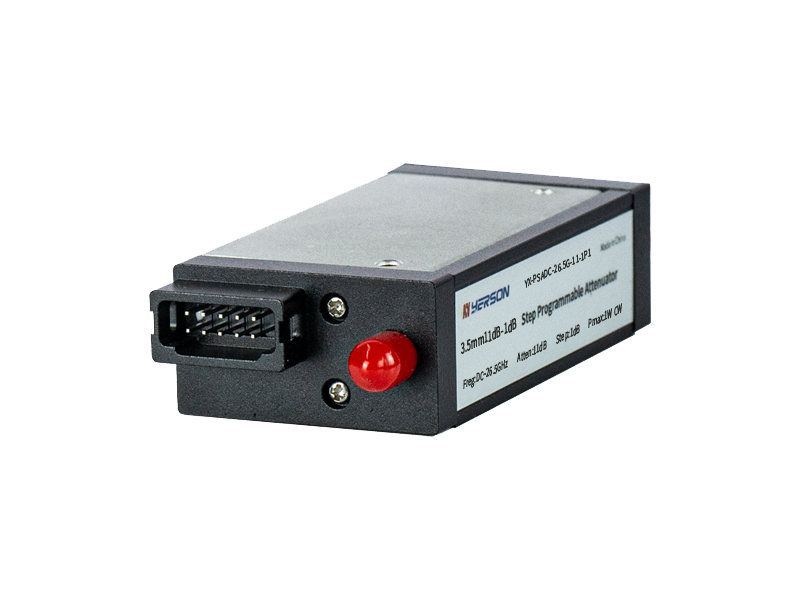

YX-PSADC-26.5G-11-1P1
DC-26.5GHz 11dB Attenuation Range，1dB Step Size, Programmable Step Attenuator
- YX-PSADC-26.5G-11-1P1
- In stock
Please contact us if you need more units than what is available online.
BULK PRICING
| TECHNICAL DETAILS | |
|---|---|
| Minimum Frequency(GHz) | 0.01 |
| Maximum Frequency(GHz) | 26.5 |
| Attenuation Range(dB) | 0-11 |
| Step Size(dB) | 1 |
| Insertion Loss(dB Max) | 2.5 |
| VSWR(Max) | 2 |
| Power(W Max) | 1 |
| Repeatability(dB Max) | 0.05 |
| Interface Type | 3.5mm |
