Home / Products / Programmable Step Attenuator / Attenuator / YX-PSADC-40G-75-5P1

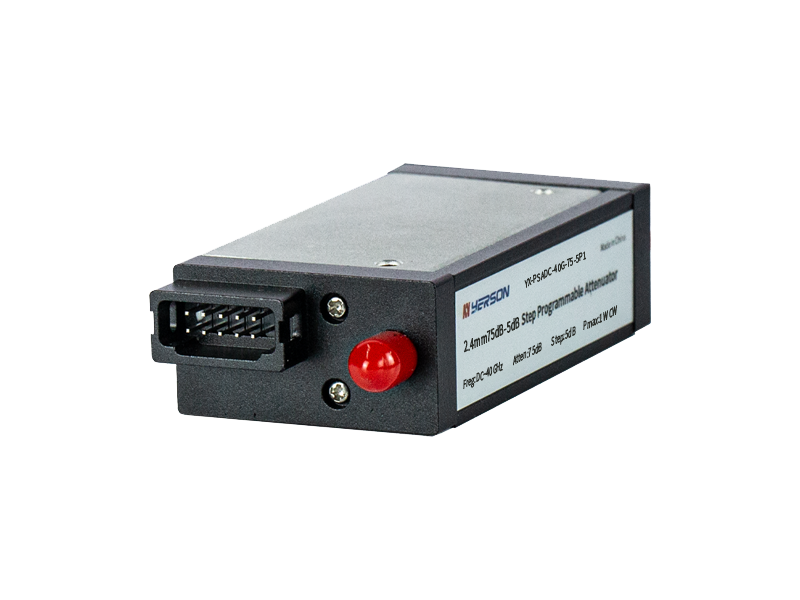

YX-PSADC-40G-75-5P1
DC-40GHz 75dB Attenuation Range，5dB Step Size, Programmable Step Attenuator
- YX-PSADC-40G-75-5P1
- In stock
Please contact us if you need more units than what is available online.
BULK PRICING
| TECHNICAL DETAILS | |
|---|---|
| Minimum Frequency(GHz) | 0.01 |
| Maximum Frequency(GHz) | 40 |
| Attenuation Range(dB) | 0-75 |
| Step Size(dB) | 5 |
| Insertion Loss(dB Max) | 4.1 |
| VSWR(Max) | 2 |
| Power(W Max) | 1 |
| Repeatability(dB Max) | 0.05 |
| Interface Type | 2.4mm |
