Home / Products / Antenna / Horn Antenna / Wide-band Double Ridge Horn Antenna / YX-WDB0.1-1-NF

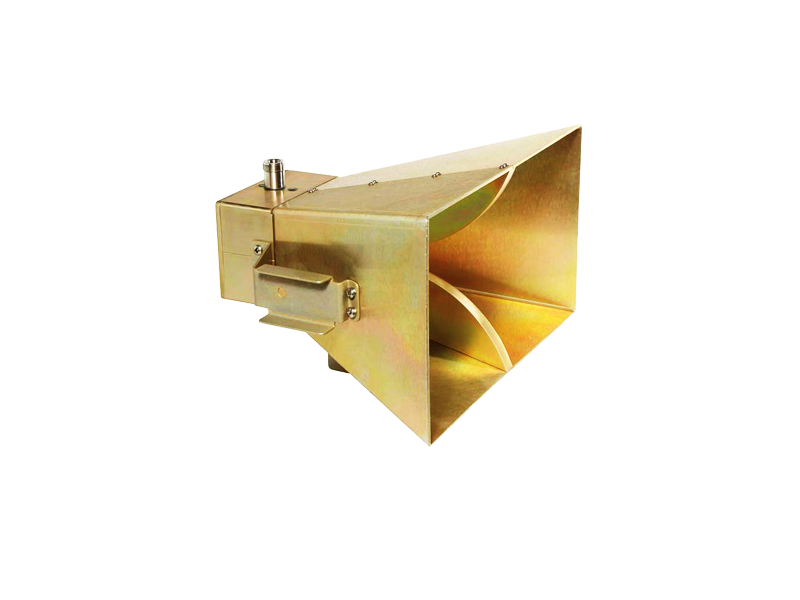

YX-WDB0.1-1-NF
8 dBi typical Gain, 0.1 to 1 GHz, N-Female, Broadband Double-Ridged Horn
- YX-WDB0.1-1-NF
- In stock
Please contact us if you need more units than what is available online.
BULK PRICING
| TECHNICAL DETAILS | |
|---|---|
| Minimum Frequency(GHz) | 0.1 |
| Maximum Frequency(GHz) | 1 |
| Gain typical(dB) | 8 |
| Polarization | Linear |
| VSWR typical | 2.5:1 |
| Coaxial Connector | N-Female |
