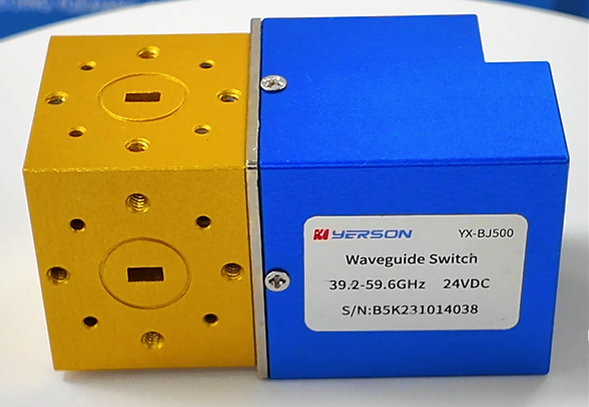

In high-end radio frequency fields including millimeter-wave communication, radar detection, automatic RF test and electronic countermeasure, fast, stable and interference-free switching of signal paths is the core guarantee for efficient operation of the entire system. Developed by Beijing Yuexiang Technology for high-frequency scenarios, the YX-BJ500 waveguide switch covers the 40-60GHz millimeter-wave frequency band. With millisecond-level high-speed switching capability, it serves as an indispensable core component for high-frequency RF equipment.
Core Product Highlights
Dedicated Millimeter-wave Frequency Band, Compatible with Mainstream High-frequency Equipment
This switch precisely covers the 40-60GHz millimeter-wave range and adopts standard BJ500 waveguide interface. It is perfectly compatible with various Ka-band RF complete machines, testing instruments and radar terminal equipment. Featuring a universal interface, it supports fast installation without extra modification and fits most mainstream equipment in the industry.
50ms Ultra-fast Switching, Perfect for Automated Working Conditions
It achieves a maximum switching speed of 50ms, completing RF signal path switching within milliseconds with sensitive and lag-free response. Suitable for high-frequency working scenarios such as automatic test production lines, time-sharing radar detection and multi-channel signal switching, it greatly improves the operating efficiency of the whole equipment and meets the uninterrupted operation requirements of automated systems.
Superior RF Performance, Lossless and Stable Signal Transmission
Adopting precision cavity manufacturing technology and gold-plated inner cavity design, the product features extremely low signal transmission loss and excellent channel isolation performance. It effectively avoids signal crosstalk and reflection interference, ensures pure transmission of millimeter-wave signals, protects high-precision rear-end RF devices, and guarantees accurate results of equipment detection, radar detection and communication.
Military-grade Durability, Long-term Stability Under Complex Working Conditions
Made of high-strength aluminum alloy with sealed dustproof and moistureproof structure, the switch is vibration-resistant and wide-temperature resistant, adapting to harsh working environments including outdoor sites, vehicle-mounted, airborne and laboratory conditions. Built with high-precision mechanical structure, it supports tens of thousands of repeated switching cycles without performance degradation. It requires no daily maintenance and reduces overall operation cost.
Flexible Control Mode & Easy Integration and Installation
It supports standard level control and comes with position feedback function, enabling seamless connection with upper computer for intelligent management. With a compact and lightweight body, it saves internal installation space of equipment. It can be used independently or cascaded to form multi-channel switching networks, meeting customized multi-channel switching demands flexibly.
Wide Range of Applications
•Millimeter-wave radar detection systems
•Automatic RF test equipment (ATE)
•Ka-band satellite communication ground stations
•Electronic countermeasure and RF simulation equipment
•Millimeter-wave security imaging and non-destructive testing equipment
Boasting dual core advantages of 40-60GHz wide frequency coverage and 50ms ultra-fast switching, the YX-BJ500 waveguide switch integrates high performance, outstanding stability and cost-effectiveness. It provides reliable signal switching solutions for both civil R&D testing and military high-standard equipment matching. We offer direct factory supply with strict quality inspection, sample testing service and customized solutions to support the steady progress of all millimeter-wave RF projects.
