RF directional couplers are essential passive components for RF and microwave systems. Without disconnecting the main line, they simultaneously sample forward transmit power and antenna reflected waves to realize power monitoring, VSWR detection and power amplifier protection in one solution, serving as key supporting components for communications, radar and test equipment.
Key Practical Functions
Accurate Bidirectional Power Sampling
While high-power RF signals transmit along the main line, coupled ports extract weak signals at a fixed ratio to monitor transmit output power and antenna reflected power separately. VSWR can be calculated in real time to quickly detect faults including antenna short circuits and feeder aging.
Power Amplifier Protection
Once excessive reflected power is detected, the system can automatically reduce output power or shut down, preventing RF power amplifiers from damage caused by reflected waves, extending equipment service life and cutting maintenance costs.
High Isolation for Precise Measurement
Featuring excellent directivity and isolation, forward and reverse signals will not interfere with each other. Coupling degree maintains flat response across the full frequency band with minor measurement errors, ideal for precision instrument calibration and signal analysis.
Non-Disruptive On-Line Signal Sampling
Ultra-low insertion loss brings negligible attenuation to main-line signals without deteriorating overall transmitting performance. Continuous on-line monitoring is available with no need for equipment shutdown during maintenance.
Signal Distribution & Link Calibration
Standard sampled signals can be fed to detectors, spectrum analyzers and monitoring modules for RF system commissioning, closed-loop power control and factory calibration of devices.
Core Product Advantages

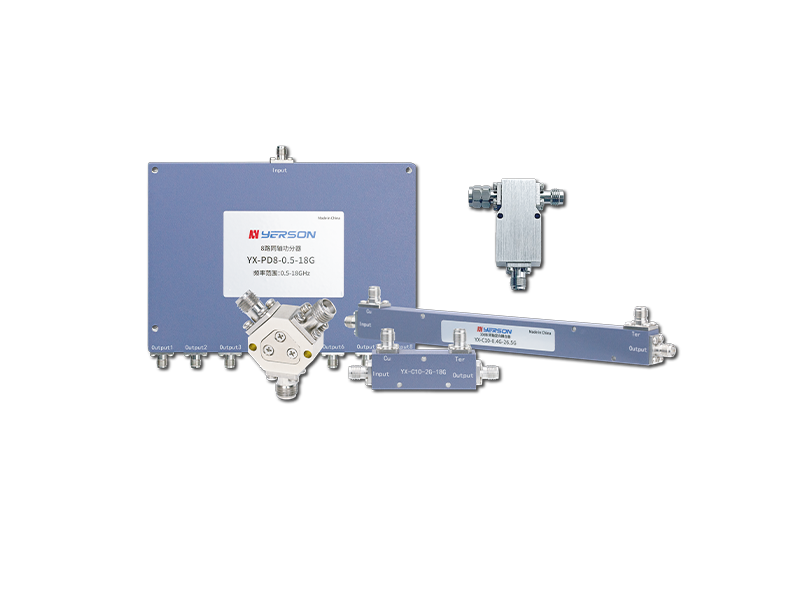

- Full frequency coverage: Products ranging from low frequency to millimeter wave available. Coaxial, waveguide and surface-mount types for selection; standard coupling values of 5dB/10dB/20dB/30dB in stock.
- High power endurance: Reinforced all-metal housing with low PIM design. Stable continuous high-power operation and consistent performance under wide temperature variation.
- Multiple connector options: N, SMA, BNC, 2.92mm and other standard connectors. Compact form factor for easy installation inside cabinets and equipment.
- Reliable performance: Integrated shielding housing resists electromagnetic interference. Every unit undergoes factory testing to guarantee consistent electrical parameters.
- Customization available: Custom frequency band, power rating, coupling degree and dual-directional structure supported. OEM & ODM bulk manufacturing offered with short lead time via direct factory supply.
Wide Range of Applications
5G base stations, private network wireless intercom systems, satellite earth stations, radar detection equipment, RF test instruments, indoor distribution systems, military microwave systems, CATV transmission, RF power amplifiers, electronic warfare equipment and laboratory measurement systems.
Factory Direct Services
Self-owned production line for independent R&D and manufacturing, eliminating intermediate markup. Fast delivery of in-stock items with professional technical support for model selection. Favorable terms for bulk orders with complete test reports supplied. We provide one-stop solutions for RF link monitoring requirements.
